45-MLD Water Treatment Plant

About us

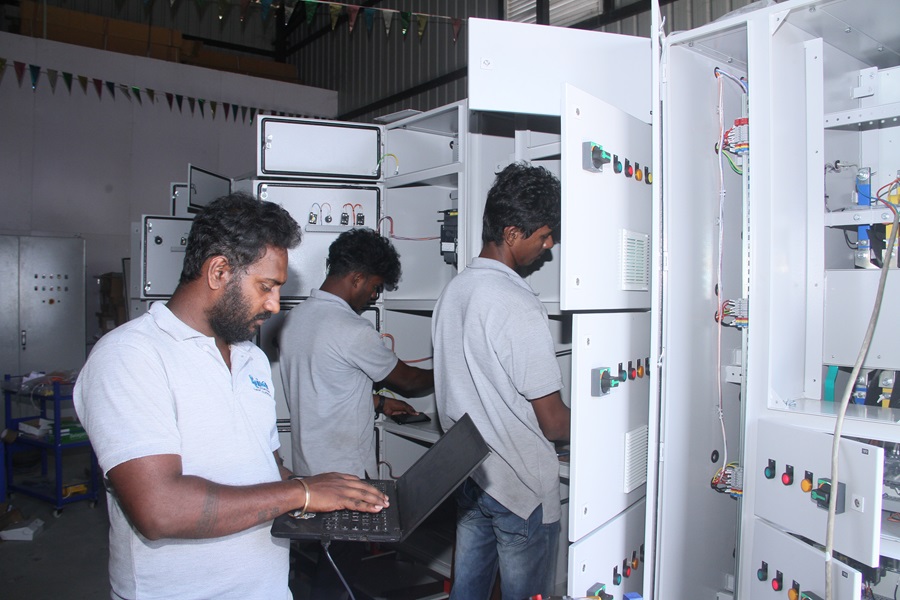

Raison Automation is recognized to be one of the Trusted Solution providers in the field of automation, focused on providing industrial automation solutions for Water & Waste Water Treatment Plant, STP.Raison Automation is headquartered in Coimbatore, India with the branch representatives at various locations across the globe.The company mainly focuses on Design, Development, Maintenance, System Integration and Consulting in Industrial Automation and Application Systern.Raison Automation provides Engineering and services in On-site assembly and staging, system simulation, acceptance testing and on-site maintenance.

Design Consideration

Aerator

02

Filter Bed

04

Raw water pump

01

Flash Mixer, Pulsator, Clarifier & Flocculator, Blower

03

Clear Water Pump house

05

Raw Water Pump

Raw Water Pump A, B, and C -ON/OFF/TRIP Condition Monitoring: Recording the Status of Each Motor
(125 KWA- VT HT PUMP)

Continuous Monitoring of Raw Water Pump Vibration and Temperature with Alarm Notification for Abnormal Conditions

All pump sets and motor-operated delivery valves (Modulating Multi turn actuator ) in the Raw Water Pump House can be centrally controlled from the Central Control Room.

Aerator

Aeration Air Diffuser Motor On/Off Control from Control Room with Monitoring and Recording of ON/OFF/Trip States. Aeration IN/OUT flow Measurement and Recording for Open Channel Flow. Aeration Outflow pH and Turbidity Measurement with Recording. pH & Alum Dosing Pump ON/OFF Control from Control Room with Monitoring and Recording of ON/OFF/Trip States

Flash mixer, Pulsator, Clarifier & Flocculator

  • 2 No's Flash Mixer Motor Control from Control Room with Status Monitoring

  • 8 No's Flocculator Motor Control from Control Room with Monitoring

  • 2 No's Pulsator Blower Motor Control & Monitoring

  • 4No's of Scrapper Motor ON/OFF & Speed Control by VFD (Integration with Scrapper System)

  • Valve Controlling and Status from SCADA

  • Pulsator Out flow Measurement and Recording for Open Channel Flow

  • pulsator Outflow PH and Turbidity Measurement with Recording

Filter Bed

Filter bed Inlet/ Outlet Water Control Valve Automation

Wash Water Inlet /Outlet Water Control Valve Automation

Air Inlet/ Outlet Water Control Valve Automation

Blower Automation

Loss of head Measurement and recording based on the Level Automate the Back Wash System

Wash water Tank Level Monitoring System

Filter Output flow pH and Turbidity Measurement with Recording

pH & Alum Dosing Pump ON/OFF Automation

Clear Water Pump House

Clear Water Pump 7 No's- ON/OFF/TRIP Condition Monitoring: Recording the Status of Each Motor

Continuous Monitoring of Clear Water Pump Vibration and Temperature with Alarm Notification for Abnormal Conditions

Energy Monitoring for Raw Water Pump: Tracking Amps,Voltage, and Current

pH,Turbidity, Chlorine Measurement with Recording

Recording Clear Water outlet Flow Rate and Totalized Flow and Clear Water Sump Level Monitoring and Recording
