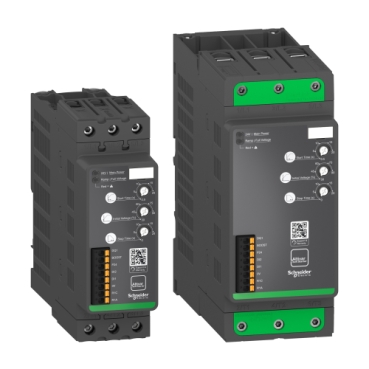

Low voltage AC - Altivar Soft Starter ATS130
Product Description
About Altivar Soft Starter ATS130:
FEATURES & BENEFITS
Facts about Altivar Soft Starter ATS130:
Product scope:
- Power range: 11 to 55kW
- Rated operational Voltage range: 200 to 480V
- Rated operational Current range: 38 to 105 A
- Control supply voltage: 24 V dc
- Operating cycle: Normal duty (S1 or S4 service duty)
- Motor type: asynchronous motors
- Motor Control: voltage control, 2-phase controlled
- Bypass: integrated
Embedded Function:
- Voltage ramp stop mode
- Freewheel stop mode
- Boost
- ATS130 overheat monitoring
ATS130 soft motor starter solution:
- Easy to assemble using Tesys Deca circuit breaker, ATS130, and fixing kit
- Tested combination
- Compact and tested assembly
- All functions of a motor Starter: soft start/soft stop, disconnect, isolation, short circuit protection, and motor overload protection.
Options:
- Cooling fan to extend the number of starts per hour
- Fixing kit for TeSys Deca Frame 3 circuit breaker
- Fixing kit for TeSys Deca Frame 4 circuit breaker
Benefits of Altivar Soft Starter ATS130:
Optimize control panel design
- Electrical flexibility: combination with motor circuit breakers TeSys Deca, or fuses, contactor, overload relay
- Mechanical flexibility: back plate or DIN rail mounting, side by side
- ATS130 soft motor starter solution, the alternative to Direct-On-Line motor
Compact products and solution
- Same width as TeSys Deca frame 3 or 4 circuit breaker
- Compatible with 200mm depth cabinet
- Side-by-side mounting
- ATS130 Soft motor starter
Quick and easy installation
- DIN rail mounting
- Spring control terminals
- Easy fixing of circuit breaker on top of ATS130
Preventive maintenance free
- No annual terminal retightening thanks to Everlink power terminals and spring control terminals
- No fan as standard: no clogging, no wear, no replacement, less downtime
Applications
- Pump
- Fan
- Compressors
- HVAC-R
- Food and Beverage
