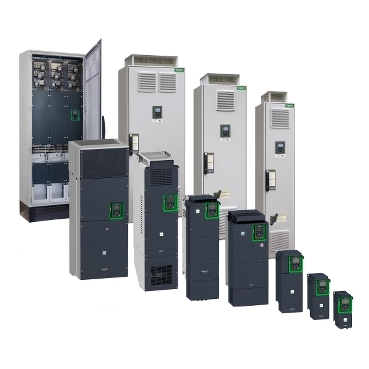

Low voltage AC - Altivar Process ATV600

Product Description

About Altivar Process ATV600:

The next generation of variable speed drives, Altivar Process is designed to deliver IIoT benefits.
• A smart, connected EcoStruxure-ready drive with built-in intelligence to gather data and share information at the enterprise level.
• Improve operational efficiency, profitability and reduce the total cost of ownership (TCO).
• Offers range from 0.75 kW to 2600 kW in all voltages with easy-to-use and consistent experience for usability, functionality, performance, and flexibility.

FEATURES & BENEFITS

Facts about Altivar Process ATV600:

Technical detils:

  • Power range : 0.75 kW to 2600 kW
  • Voltage range : 200 – 400 – 690 V Three-phase
  • Motor type : Induction, PM, Reluctance, IE2-IE3-IE4 motors
  • Motor control type : Open-loop
  • THDI : THDi 48%(Embedded), THDi 10% or THDi 5% with Passive filter or multi-pulse supply, THDi = 3% with Low Harmonic module<<<<

Embedded Function:

  • Pump efficiency tracking
  • Multi master-slave pump management
  • Pump and pipe protection
  • Fan management
  • 95% accurate energy consumption measurement>

Safety Functions:

  • STO: Safe Torque Off

Communication Protocols:

  • Embedded: Ethernet, Modbus
  • Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink, BACnet MS/TP

Benefits of Altivar Process ATV600:

Process optimisation

Bring intelligence to your system by enabling your assets to provide advanced process data for smarter operations.

Enhance equipment effectiveness
Improve productivity and availability by up to 20%.

Energy management
Optimise and reduce your energy consumption by up to 30%.

Asset management

Reduce downtime and maintain the performance of your main assets.

Applications

  • Water and wastewater applications
  • Centrifugal and volumetric pumps
  • Building applications
  • Food and beverage applications
  • Compressors
  • Fans
  • Energy efficiency
