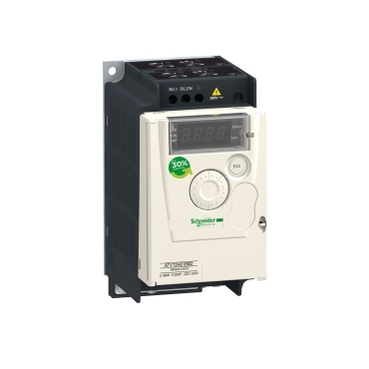

Low voltage AC - Altivar 12

Product Description

About Altivar 12:

The Altivar 12 offers increased reliability, and simplicity of operation and saves even more time for all your applications.

  • The smallest drive with integrated EMC for compact machines
  • Ever more intuitive and user-friendly programming and menus
  • It can be configured in complete safety with the power off, even in its packaging
  • A design that can withstand even the harshest environments
  • The components are built to endure ten years with no compromise on quality.

FEATURES & BENEFITS

Facts about Altivar 12:

Specification:

Designed for integration • Advanced functions for increased productivity (integrated PID, multi-speed, etc.) • Easy communication with machine components via integrated universal Modbus serial link • Smaller footprint, as the baseplate mounted version dissipates heat into the machine frame Highest quality Improved performance for your motors thanks to:

  • The factory settings, which provide a high-quality drive from the very first time the power is turned on • The integration of Standard (U/f), Performance (sensorless flux vector control, or SVC), and Pump/Fan (quadratic profile Kn²) control profiles
  • Easy access angles • Numerous, easy-to-identify markings • Fast detection and protection against current motor peaks (familiar with motor switching and catch-on-the-fly applications) • Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter Save time on wiring • Easy access to all the wiring and settings on the front panel • Easy access angles • Only one screwdriver is needed for all connections Save time on programming The drive can be configured before it is received (by the distributor), during storage (by the storekeeper), or during fitting before the electrical enclosure is powered up for the first time. • High dynamic performance on acceleration and braking • Excellent speed regulation on machine load surges • Reduced noise and maintenance Designed for easy fitting and wiring
  • A navigation button for easy menu access: configure your application parameters in just a few clicks • A three-level menu structure • Reference Mode:
  • In local operation (On/Off buttons) and for speed adjustment and display • Monitoring Mode:
    For displaying parameters (create your own menu) • Configuration Mode:
    For configuring your applications and settings • Save time on commissioning • No adjustment is required and there is a quick start guide for immediate setup
  • Ease of programming: Work in the language of your choice • SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable • Simple configuration transfer via Simple or Multi-Loader

Functions:

Discreet in size but big on performance!
Variable speed drives for commercial equipment and small machines with three-phase 240 V asynchronous motor 0.18 to 0.75 kW, 120 V single-phase power supply 0.18 to 2.2 kW, 240 V single-phase power supply 0.18 to 4 kW, 240 V three-phase power supply • Can be configured in its packaging • Quick start option requiring no adjustment • Intuitive navigation • Even more compact • Category 1 EMC filter • Local control on the front panel • Modbus serial link • Resistant to harsh operating environments.

Scope:

Commercial equipment • Handling (access barriers, rotating advertising billboards) • Health (medical beds, treadmills) • Food and beverage (commercial ovens, mills, kneading machines, mixers, etc.)

Small machines for industry • Material handling (small conveyors, etc.) • Packaging (small labelling machines, small bagging machines) • Pumping applications (suction pumps, centrifugal pumps, circulating pumps, etc.) • Machines fitted with fans (air or smoke extraction, plastic film-making machines, ovens, boilers, etc.)

Other applications • Mobile machines and small devices equipped with a power socket • Applications that traditionally use other solutions (2-speed DC motors, mechanical drives, etc.)

Benefits of Altivar 12:

Small
The small format and advanced functions of the Altivar 12 mean that it can easily replace any existing drive in its category.

Economical
Faster and easier installation. Accelerated configuration

Robust
Long-life components of a new generation. The drive can survive harsh environments, and cards are standardly coated.

Ecological
An average of 30% energy savings for the majority of applications.

Applications

  • Water and wastewater
  • Machinery
  • Food and beverage applications
