Low voltage AC - Altistart 01
Product Description

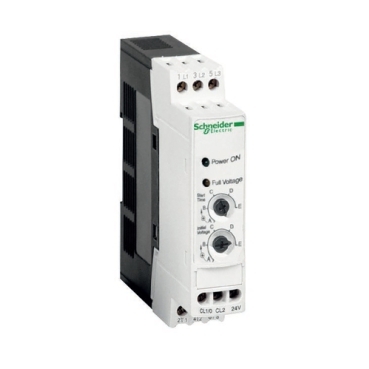

Discover Altistart 01:
It helps to prevent mechanical shocks, which cause wear and tear, and subsequent maintenance work and production downtime.The Altivar Soft Starter ATS01 is compact, easy to install, and can be mounted side-by-side.
FEATURES & BENEFITS
Facts about Altistart 01:
Specifications:
- Designed for 1-phase and 3-phase AC motors and simple machines
- Minimum dimensions (22.5 mm/45 mm width)
- Quick and easy set-up
- Suppression of torque surges at startup
- Limitation of current peaks
- Suppression of voltage drops
- Side-by-side mounting
- Adjustable starting and deceleration times:5 seconds or 10 seconds
- Adjustable unjamming torque
- Integrated bypass contactor
- Simple dialogue by 2 LEDs
- Signalling on completion of starting
- 24 V integrated power supply (ATS01N2…)
- “Boost” function for difficult starting conditions (ATS01N2…)
Functions:
- 2-wire control
- 3-wire control
- Starting time
- Voltage boost function via logic input
- End of starting
Scope:
- Conveyors
- Conveyor belts
- Pumps
- Fans
- Compressors
- Automatic doors and gates
- Overhead Travelling Cranes (Horizontal Loads)
- Small cranes
- Belt-driven machinery
Benefits of Altistart 01:
Your starting solution
Enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner.
Easy to install
Extremely compact, the Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency.
Operation optimisation
Reduced machine wear and minimised maintenance time.
TeSys®U combination
Together with TeSys Model U, you will have the benefit from a unique motor starter solution.
Applications
- Water and wastewater
- Machinery
- Food and beverage
