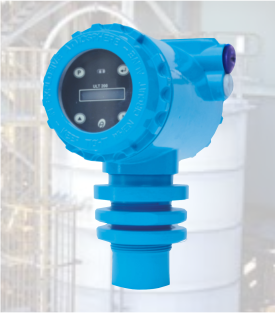

/ULT - 200B

24 VDC/Battery/Solar Powered Ultrasonic Level Transmitter

Product Description

Electronet series ULT-200B is a Battery Operated Ultrasonic Level Transmitters specially designed for non contact type level measurement. Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from sensor and surface of liquid and back to sensor. Ultrasonic level transmitters are the best for applications such as slurries, corrosive liquids and waste water without obstacle throughout the beam. The transmitter provides local indication through LCD.
The measuring range is available from 0.6 to 12 meters.

Industries / Applications

Process industry
Nuclear, Thermal, Hydro Power Industry
Ship-Building and Submarine Industry
Water and Waste Water Industry
Chemical Industry
Pharmaceutical Industry

Features -

Non contact type
Compact size & easy maintenance
Easy to install & configure
Display auto shut off facility
Process down time minimized
Automatic temperature compensation
2 wire direct current loop powered
Password protection
Display: LCD
Software calibration
Narrow beam technology
Measures liquid height, distance to height, volume or flow in open channels
