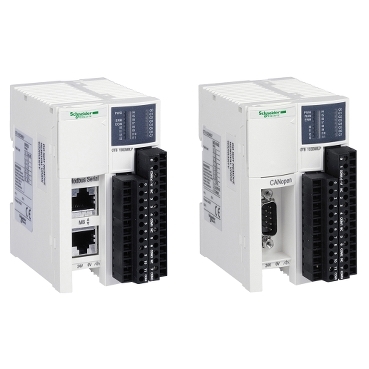

Logic Controller - Modicon OTB

Product Description

About Modicon OTB

IP20 optimum modular I/O system, for simple machines (up to 248 I/Os)

Part of Modicon

Simply optimum !

FEATURES & BENEFITS

Facts about Modicon OTB:

Optimum solution for cost, function, size and simplicity challenges:

  • 3 communication base modules: CANopen, Modbus and Ethernet, each with directly integrated 20 I/Os
  • expandable using 8 to 32- channel I/O modules (up to 264 channels)
  • a wide range of I/O expansions  (common to Twido programmable controllers, Modicon M238 logic controllers, Magelis XBTGC HMI controllers) for minimising the number of references

Simple installation:

  • ideal compactness: 20 I/Os within a width of 55mm, including bus connection
  • sensor /actuator connections using removable screw terminals
  • direct mounting on DIN rail

Save engineering time:

  • Fully integrated in EcoStruxure Machine Expert software (software suite for Modicon M238 / Magelis XBTGC / Altivar IMC…)
  • Integrated in TwidoSuite (software for Twido)

The Modicon OTB (IP20) I/O system enhances  the “Flexible Machine Control” concept.

  • 1 software environment – EcoStruxure Machine Expert
  • Among the multiple control platforms, it’s the best companion for:
    > Logic controllers Modicon M238
    > HMI controllers Magelis XBTGC
    > Drive controllers Altivar IMC…

This solution also integrates perfectly into Twido automation platforms.

Benefits of Modicon OTB:

Simply optimum!

Designed for simple and compact machines, this economic modular IO system enables the creation of separate groups of industrial I/Os, each positioned as near to the machine as possible, managed by a master controller (PLC, HMI or variable speed drive) via a fieldbus or communication network. Simple to select and install, Modicon OTB modular IO system reduces your cabling costs.

Applications

  • All machines type…
  • Packaging
  • Conveying
