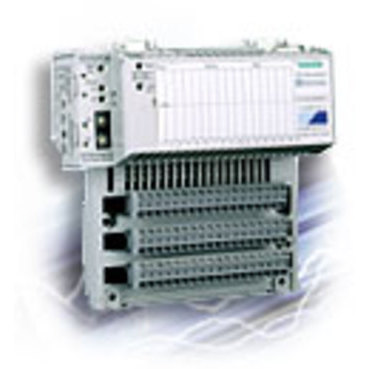

Logic Controller - Modicon Momentum for Unity

Product Description

Entry Level Unity PLC

Modicon Momentum for Unity is the simple PLC that helps you cost-effectively increase the capacity and efficiency of your legacy Modicon Momentum application. It enables you to standardise and manage your controllers on a single programming software, EcoStruxure Control Expert (formerly known as Unity Pro).


FEATURES & BENEFITS

Facts about Modicon Momentum for Unity:

Core Features:

333MHz CPU, 3.5 MB RAM, Hi Speed USB, RS232/RS485 Port, Real Time Clock, Memory Retention of State RAM without Battery, Web and LED Diagnostics.

Unity M1 CPU:

  • Common Core Features plus
  • 2nd Serial Port RS485 2 Wire fixed RJ45
  • Embedded Web Diagnostic over USB
  • Enhanced front LED Panel for Run, Err 10, MB1, MB2

Unity M1E Global Data CPU:

  • Common Core Features plus
  • 10/100 Ethernet, Auto Sense, Auto Cross
  • Ethernet I/O Scanner 32 Devices
  • Ethernet Global Data 64 Variables, 128 Word Pub/Sub, 2048 Words total
  • Embedded Web Diagnostic over USB/Ethernet
  • Enhanced front LED Panel for Run, Err IO, MB1, Eth Link/Status/Act

Unity M1E CPU:

  • Common Core Features plus
  • 10/100 Ethernet, Auto Sense, Auto Cross
  • Ethernet I/O Scanner 32 Devices
  • Ethernet Global Data 64 Variables, 128 Word Pub/Sub, 2048 Words total
  • Embedded Web Diagnostic over USB/Ethernet
  • Enhanced front LED Panel for Run, Err IO, MB1, Eth Link/Status/Act



Benefit of Modicon Momentum for Unity:

Cost effective
Preserve the existing Momentum I/O investment and import developed Modsoft, Proworx, or concept programming.

Simple
Migrate to a single intuitive software suite to manage all controllers.

Ready for the future

Embark on a clear path for future evolution with PlantStruxure integrated architecture.

Applications

  • Energies and chemicals
  • Mining, minerals and metals
  • Food and beverages
  • Material handling
