Orifice Integral Assembly
Orifice Integral Assembly

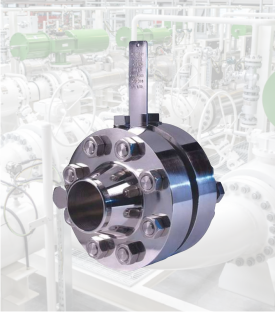

Orifice Plate Assembly

A precision-engineered flow measurement set consisting of a calculated orifice plate, a pair of carrier rings or flanges, and necessary gaskets for inline installation. It serves as a reliable primary element that creates a predictable pressure drop, allowing for accurate flow calculation in high-pressure steam, gas, and liquid applications.
