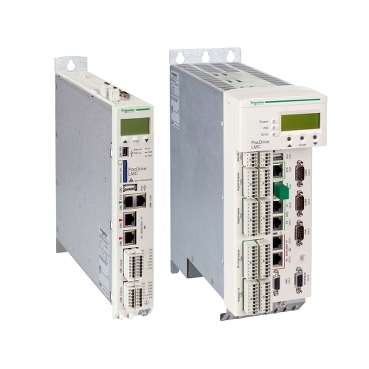

PacDrive 3 LMC Eco / Pro / Pro 2

Product Description

High performance motion controller

The PacDrive 3 LMC controllers, Eco and Pro2 series, provide a scalable hardware platform and scalable performance for synchronising up to 130 servo axes with a 1 msec network update rate and support for up to 255 virtual axes. They integrate PLC, HMI interfaces, and IT functionalities into a single hardware platform, for complete automation solutions including robotics and multicarrier.

FEATURES & BENEFITS

Facts about PacDrive 3 LMC Eco and LMC Pro2

  • EcoStruxure™ Machine Expert
  • CoDeSys based, compliant to IEC 61131-3
  • Application libraries and open-source software are available
  • Libraries for implementing PackML guidelines and Weihenstephan standard
  • FDA and PLCopen compliant library functions
  • Programme up to 4,096 dynamic electronic cam disks

Hardware

  • From 0 to 130 servo drives/robot axes, in parallel up to 250 virtual axes
  • 1 msec network update rate for 130 servo axes
  • All controllers have an integrated PLC (5 μsec for 1000-bit instructions)
  • Network with up to 20 controllers/machines possible
  • Real-time controller-to-controller communication via Sercos
  • Integrated high-speed I/O, externally expandable

Protocols

  • Full Ethernet-based communication with Sercos for I/O, motion (robotics), and safe communication
  • Realtime controller-to-controller communication online level via Sercos, in parallel to Sercos communication on the field level
  • Option modules for additional protocols
  • Supporting other RT Ethernet solutions, standard IEC field busses, and as well TCP/IP communication

Benefits

Scalable

  • From LMC Eco for few axis, to LMC Pro2 for lots of axes, up to LMC Pro2 902 with boosted CPU for more calculation power
  • Synchronising up to 130 servo axes, up to 255 virtual axes
  • Network with up to 20 controllers/machines possible
  • Integrated high speed I/O, externally expandable
  • Option modules for additional protocols

One engineering software

EcoStruxure™ Machine Expert

SE templates and libraries for fast and reliable programming

For full life cycle: commissioning, diagnostics and maintenance

Efficient

  • Centralised architecture for shorter engineering and maintenance time through
  • Programme simulation without virtual axes for faster development and commissioning
  • Integrated diagnostic functions such as data logger and oscilloscope for quick and precise diagnosis
  • Plug-and-play solution with automatic parameterizing/firmware adaption of (Sercos) components for shorter maintenance times
