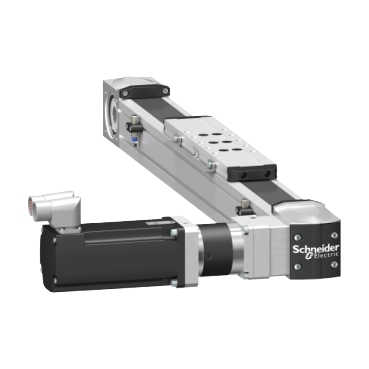

Lexium PAS B portal axes are designed for applications that require positioning of heavy loads over long distances with highly dynamic performance such as material handling, palletizers, labelling and hoisting.
- Great stroke lengths of up to 5500 mm.
- High dynamics with a drive torque of 110 Nm.
- Positioning speeds of up to 8 m/s.
- Drive and end blocks are identical. Additional drive and output components can be attached with a coupling or a shaft journal at both ends.’
Lexium PAS S with ballscrew
Lexium PAS S portal axes are designed for applications that require precise positioning of heavy loads at low to medium speeds and high feed forces such as cutting out, machining, optical and measuring applications.
- Stroke lengths of up to 3000 mm.
- Ballscrew up to 3000 rpm speeds.
- High feed forces and rigidity.
- Stroke deliverable per millimetre.
- Carriage with threaded holes and centring for reproducible load mounting.
- Exchangeable grease nipples, for example, to mount an automatic lubrication system.
- Motor and gearbox assembly via flexible coupling system on both sides of the end blocks.
- Sensors movable in T-slot.
- Customised special solutions on request.
