Lexium CAS, CAR

Product Description

Cantilever axes with internal or external guide and toothed belt drive in different designs and sizes.

Advanced motion control and robotics

Lexium CAS4 are ready-to-install cantilever axes with toothed belt drive and one linear guide in four sizes. In contrast to the portal axes, the carriage and the drive block are fixed in place. The load is mounted on the movable axis profile or on one of the two end plates attached to the axis profile. The cantilever axes are ideal for lifting heavy loads with short and long strokes.

FEATURES & BENEFITS

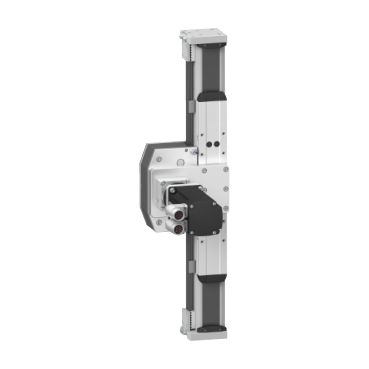

Lexium CAS4 cantilever extruded-section axis

Applications requiring loop-back movement within a working area such as pushing and high feed forces such as clamping and cutting out.
• Driving block with drill holes and T-slots on two sides for easy and flexible mounting
• Load can be fixed to the two end blocks and one of the sides using the T-slots
• Quick-coupling system for simple motor assembly
• Stroke lengths of up to 1800 mm
• Compatible with Lexium PAS portal axes

Lexium CAS3 cantilever round bar axis

Applications requiring high-speed positioning for short working distances such as material handling.
• Mobile structure with low travelling weight
• Compact design
• Flexible mounting combinations for simple integration into a variety of solutions
• Stroke lengths of up to 500 mm

Lexium CAS2 telescopic axis

Applications requiring positioning over long distances where space is at a premium such as material handling, stock transporters, and transfer machines.
• Very strong with low weight
• Carriage with grooves to facilitate load mounting
• Compact design
• Stroke lengths of up to 2400 mm

Enviable position

The axes are made up of a stationary motor unit and a mobile axis body that moves into the work area.


High resolution

Lexium CAS axes are made up of a mobile axis construction, a mobile carriage, and a fixed motor for a longer maximum travelling distance than the actual length of the axis.


Extremely compact

Available in extruded sections and round bar designs, each giving significant advantages for a variety of loads and travel distances (strokes).

Applications

  • Packaging Machinery
  • Healthcare
  • Electronic equipmen
