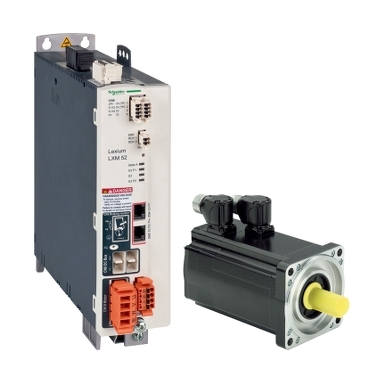

MCR – Lexium 52 & Motors

Ready-to-use solution

•
  Fully integrated in PacDrive system and Ecostruxure Machine Expert.
• Electronic name plates allow controllers to recognise and configure the drives automatically.
• Integrated safety functions reduce design times and make it easier to comply with safety standards.
• Hardwired invert enables safety input (STO), internal braking resistor and internal EMC filter.

High performance

• Overload capacity: high peak current (up to 4 times the continuous current).
• Power density: the compact size of the servo drives offers maximum efficiency in a small space.
• Compliance with electromagnetic compatibility (EMC) requirements.

Scalable

• Power levels: from 1.5 to 24 A continuous current and 6 to 72 A peak current.
• Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp).
• External braking resistors, when the servo motor has to be braked frequently.
• Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3.
• Line chokes for improved protection against overvoltages to reduce harmonic distortion of the current.

Dynamic, highly efficient servo motors

• Lexium SH3 is dynamic in its performance, with a higher power density of up to 9000 rpm. It features different flange dimensions, setups, and an additional connection.
• Lexium MH3 is available in four flange series designed for medium inertia, high-load uses, and small-sized machines operating up to 6000 rpm.
• Lexium SHS stainless steel is designed with a high-torque output, featuring one motor cable for easier installation and maintenance. This makes it perfect for use in Food and Beverage and Pharmaceutical settings.
