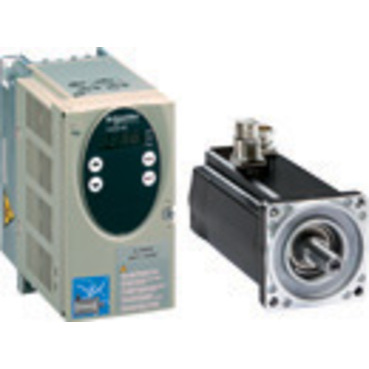

Lexium 05 & Motors
Servo drives and servo motors for machines from 0.4 to 6 kW

Product Description

Decentralised motion control solutions They consist of a motor and control electronics. They are controlled via a communication bus, a pulse/direction (P/D) interface, or an I/O interface (for the “Motion sequence” operating mode). Lexium-integrated drives are used as decentralised drives in machine building. Combined with our Lexium Controller or a PLC, they can be used to create complex control system architectures at minimum cost. Ready-to-use function blocks are available for programming movements with our or third-party motion controllers

FEATURES & BENEFITS

Lexium 05 servo drives

  • Power range from 0.4 to 6 kW
  • Voltage range from 115 V to 480 V

BSH servo motors

  • Nominal torque of 0.5 to 36 Nm
  • Nominal speed of 1500 to 8000 min –1
  • Low inertia

A new “additive free” approach

  • ECM filter, “Power Removal” safety function, SinCos Hiperface encoder, connection to CANopen, Modbus, Profibus DP networks, connection to all analogic controllers

The ultimate simplicity

  • Simply Start Menu, Automatic Motor identification & Auto Tuning Functions.

Benefits

With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines – the perfect answer to your technical and economic challenges. By combining the essential motion control functions with control and command interfaces, Lexium 05 meets your requirements for the simplest, most reliable and most cost-effective machines.


Applications
1. Material Handling,
2. Printing & Packaging Applications,
3. Winding & Unwinding,
4. Small Machine Tools & Testing Machines,
5. Automated Conveyors.
