/Low Voltage Drive

Good Drive100 (GD100-PV)

Basic details -

Solar Water Pump Vfd

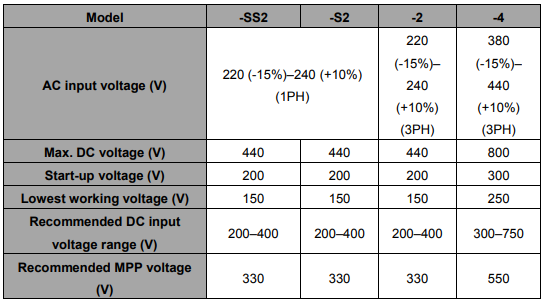

Voltage Range:
  • AC 1PH 220V In / AC 1PH 220V Out – 0.4 to 0.75Kw ( SS2 Model )
  • AC 1Ph 220V In / AC 3PH 220V Out – 1.5 to 2.2Kw ( S2 Model )
  • AC 3PH 220V In / AC 3PH 220V Out – 1.5 50 7.5 Kw ( 2 Model )
  • Ac 3PH 380V In / AC 3PH 380V Out – 0.75 to 200Kw ( 4 Model )
5 Digital Input
1 High Speed DI
1 Relay Output
Support v/f, svc

Features -

Support synchronous, asynchronous motor
Optional PLC card, I/O card, communication card, PG card, etc.
Support optional expansion card：Ethernet, CANopen, Profibus DP, Bluetooth, Profinet
Built-in STO safety torque off function
18.5kw~110kw standard built-in DC reactor

Application -

Solar Water Pumping
